304L Square Rectangle Stainless Steel Plate / Sheet For Chemical, Construction
304L Square Rectangle Stainless Steel Plate / Sheet For Chemical, Construction
Class：Stainless steel sheet
Time：2024-05-28
Introduction：WuXi Sylaith Special Steel Co., Ltd. is a large production and supply enterprise, is a collection of carbon steel sheet, seamless steel pipes, stainless steel sheet, stainless steel pipe, copper alloy, aluminum alloy, production, trade, export, logistics, service, new product development in one of the large steel enterprises.
PRODUCT DETAILS
As a low-carbon 304 steel, its corrosion resistance is similar to that of 304 steel under normal conditions, but after welding or after stress relief, its resistance to grain boundary corrosion is excellent; it can also remain good without heat treatment. High corrosion resistance, operating temperature -196℃～800℃.
Product name | 304l Stainless Steel Sheet |
Place of origin | China |
Type | Plate/ Sheet/Coil |
Mainly Grade | 304l |
Technique | Hot Rolled |
Materials | 300 Series |
Standard | ASME, ASTM, EN ,BS,GB,DIN, JIS etc. |
Certification | BV, ISO, CE, SGS, etc. |
Surface treatment | NO.1,2D, |
Width | 100-2000mm or as required |
Thickness | Hot Rolled:3~100 mm or customized |
Length | 100-6000mm |
Regular size | 1219*2438mm,1219*3048mm,1219*4000mm |
Processing Service | Bending, Welding, Decoiling, Punching,Cutting:Laser cutting, help the customer to cut the required size |
Tolerance | ±1% |
Delivery Time | within 7 days after deposit |
Applications | Construction |
MOQ | 1 Ton |
Sample | We can provide it for free but not including sea freight |
Payment terms | 30%T/T,L/C |
Price Term | FOB, CFR, CIF, EXW |
Chemical Composition
Grade | C | Si | Mn | P | Ni | Cr | Mo |
201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | 3.5-5.5 | 16.0-18.0 | - |
202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | 4.-6.0 | 17.0-19.0 | - |
301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | 6.0-8.0 | 16.0-18.0 | - |
302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | 8.0-10.0 | 17.0-19.0 | - |
304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 8.0-10.5 | 18.0-20.0 | - |
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 18.0-20.0 | - |
309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 22.0-24.0 | - |
310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | 19.0-22.0 | 24.0-26.0 | - |
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 17.0-19.0 | - |
630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | 3.0-5.0 | 15.5-17.5 | - |
631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | 6.50-7.75 | 16.0-18.0 | - |
904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | 0.19-0.22 | 0.24-0.26 | - |
410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | - | 11.5-13.5 | - |
430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.60 | 16.0-18.0 | - |
Physical Properties
Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation(%) | Hardness (HRB) |
201 | ≥655 | ≥310 | ≥40 | ≤100 |
202 | ≥620 | ≥260 | ≥40 | ≤100 |
304 | ≥515 | ≥205 | ≥40 | ≤92 |
304L | ≥485 | ≥170 | ≥40 | ≤88 |
316 | ≥515 | ≥205 | ≥40 | ≤95 |
316L | ≥485 | ≥170 | ≥40 | ≤95 |
321 | ≥515 | ≥205 | ≥40 | ≤95 |
409 | ≥380 | ≥205 | ≥20 | ≤80 |
409L | ≥350 | ≥185 | ≥22 | ≤80 |
430 | ≥450 | ≥205 | ≥22 | ≤80 |

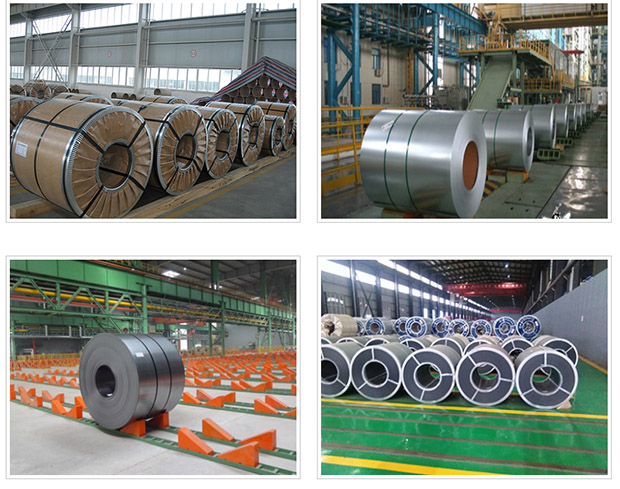

Detailed Photo
Packaging & Shipping
